Products＞Tenoner＞Double support model

TRN

Max. processible width	Length of chain beam
Max. processible width	3500mm	4000mm
1250mm	TRN-1208F/3500	TRN-1208F/4000
1850mm	TRN-1808F/3500	TRN-1808F/4000
2450mm	TRN-2408F/3500	TRN-2408F/4000
3050mm	TRN-3008F/3500	TRN-3008F/4000

■ Caterpillar Chain
Standard chain and narrow chain can be fit. In case of standard chain, minimum processible width is 240 mm, and 160 mm for narrow chain. The chain piece is made of ductile cast iron and special plastic plate which are high in resistance to abrasion.
The caterpillar chain supports smooth material sending which meets the processing speed and precision cutting.

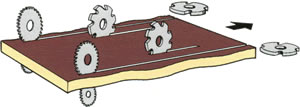

■ Cutter
TRN series corresponds up to 6 cutters. In order for accurate sizing, the cutter is attached directly to the poll end of the specially-designed high precision motor which occurs no axial runout, no rattletrap. Big shaft diameter and high precision ball bearing support smooth rotation. Appropriate cutter helps accurate and beautiful processing.

■ Cover
Two types of covers (flip-up type or slide type) are option for comfortable working environment.

	Flip-up type		Slide type

			TRN-1208F/3500 TRN-1208F/4000	TRN-1808F/3500 TRN-1808F/4000		TRN-2408F/3500 TRN-2408F/4000			TRN-3008F/3500 TRN-3008F/4000
Processible size	Width		240 ～ 1,250 mm	240 ～ 1,850 mm		240 ～ 2,450 mm			240 ～ 3,050 mm
	Max. thickness		100 mm
	Max. length		750 mm
Cutter	Trim Saw	Power	5.5 kW × 2
		Speed	3,600 r.p.m.
		Diameter	φ305 mm
	Scoring Saw	Power	0.75 kW × 2
		Speed	3,600 r.p.m.
		Diameter	φ203 mm
	Tenon Head	Power	3.7 kW × 2
		Speed	3,600 r.p.m.
		Diameter	φ254 mm
	Cope Spindle	Power	3.7 kW × 2
		Speed	3,600 r.p.m.
		Diameter	φ254 mm
Feed	Power		2.2 kW
	Rapid traverse		4～18 m/min. (Variable speed)
Machine	Chain top surface height		900 mm
	Space occupancy		3,850 × 4,500 mm		4,450 × 4,500 mm		5,050 × 4,500 mm	5,650 × 4,500 mm
	Weight		5,200 kg		5,500 kg		5,800 kg	6,100 kg

* Above specification is for 60 Hz. Trim Saw and Scoring Saw move as one.Consult us for change of specification at the option.

We have a variety of lineup for your needs. We offer the best suited machine for intended purpose. Please consult us about machine specification and control system.

■ NC control

FANUC 30 i series with PC installed

	・ FANUC 30 i series with PC installed
	・ Maximum 20 controlled axis
	・ 8 simultaneously controlled axes
	・ Color LCD
	・ Touch panel
	・ Widely supported around the world
	・ Positioning setting unit 1/100 mm
	・ USB or PC Card data storage

■ Digital control system

	・ Enter the intended number and push one button. Then setting starts automatically.
	・ Both cutting width (column open/close) and thickness measurement can be controlled
