Products>Modeling machine

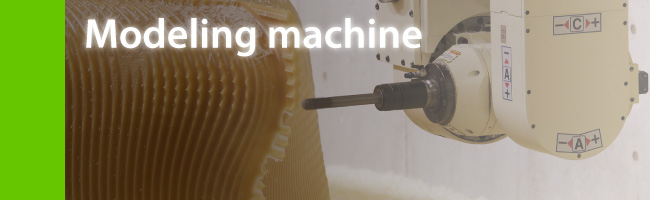

Modeling machine



processing clay model of automobill

Machine for processing full-scale clay model of the motor vehicle. Avoiding interference with the work and spindle head by tilting and swiveling of the spindle head, and it makes efficient three dimensional processing possible. The machine meets the specific needs of the motor vehicle industry.

■Working environment
-Prevention of oil falling on the work.
-Enclosure for soundproofing, dust proofing and shatterproof of the tool.

■Accuracy management
-Automatic tool length measurement at every automatic tool change.
-Feedback scale
-Spindle coolant

Play a part of development of new design.


3D



  NC-151MC-2015/M
Stroke X axis (Spindle left/right) 2,300 mm
Y axis (Table front/back) 1,800 mm
Z axis (Spindle up/down) 600 mm
B axis (Spindle tilting) ± 105°
C axis (Spindle swivel) ± 180°
Table Size 1,500 × 2,000 mm
Number 1
Rapid traverse X , Y axis 30 m/min
Z axis 10 m/min
Spindle Number of spindle 1
Speed 18,000 r.p.m.
Motor 7.5/11 kW
Spindle nose NT40
Tool change   20
NC control HEIAN-FANUC



full-size clay model of automobile

Machine for processing full-scale clay model of the motor vehicle. It reproduces complex 3D-surface of the design, and you can put the design in full-scale model to feel it. This machine is vital for designing process.


NG-151MC-3165



  NG-151MC-3165
Stroke X axis (Spindle front/back) 6,500 mm
Y axis (Spindle left/right) 3,500 mm
Z axis (Spindle up/down) 2,100 mm
A axis (Spindle tilting) ± 110°
C axis (Spindle swivel) ± 210°
Table Size 3,100 × 6,600 mm
Number 1
Spindle Number of spindle 1
Speed 20,000 r.p.m
Motor 11/15 kW
Spindle nose HSK-63F
Tool change   12
NC control   HEIAN-FANUC



processing wooden form for casting of machine parts

Machine for processing wooden mold. Dust enclosure helps to offer pleasant working condition. High-quality finished form is promised.


NC-151MC




  NC-151MC-2616
Stroke X axis (Spindle left/right) 2,200 mm
Y axis (Table front/back) 3,400 mm
Z axis (Spindle up/down) 700 mm
B axis (Spindle tilting) ±90°
C axis (Spindle swivel) ±180°
Rapid traverse X axis 24 m/min.
Y axis 24 m/min.
Z axis 10 m/min.
B axis 3000°/min.
C axis 3000°/min.
Table Size 2,600 × 1,600 mm
Spindle Number of spindle 1
Speed 5,000 r.p.m
Motor 7.5/11kW
Spindle nose NT40
Tool change   16
NC control HEIAN-FANUC

wooden or plastic resin form of automobile parts

This machine is designed for high speed and high precision machining of chemical wood and foam polystyrene.
High-quality finished form is expected.


NC-131MC-2613



  NC-131MC-2613
Stroke X axis (Spindle left/right) 2,600 mm
Y axis (Table front/back) 1,300 mm
Z axis (Spindle up/down) 450 mm
Rapid traverse X axis 40 m/min.
Y axis 40 m/min.
Z axis 10 m/min.
Table Size 2,600 × 1,300 mm
Spindle Number of spindle 1
Speed 10,000 r.p.m
Motor 5.5/7.5 kW
Spindle nose NT40
Tool change   16
NC control HEIAN-FANUC
